FNIRSI® LPM-10A Multifunctional Network Cable Tracker
The FNIRSI LPM-10A is a smart multifunctional cable tracker and network tester with a 2.4-inch color screen. It supports cable tracing (normal/anti-interference), length and crimp tests, PoE and NCV detection, and port flashing. Featuring high accuracy, Type-C charging, and a 1500 mAh battery, it’s ideal for efficient network installation and troubleshooting.
Key Fetures

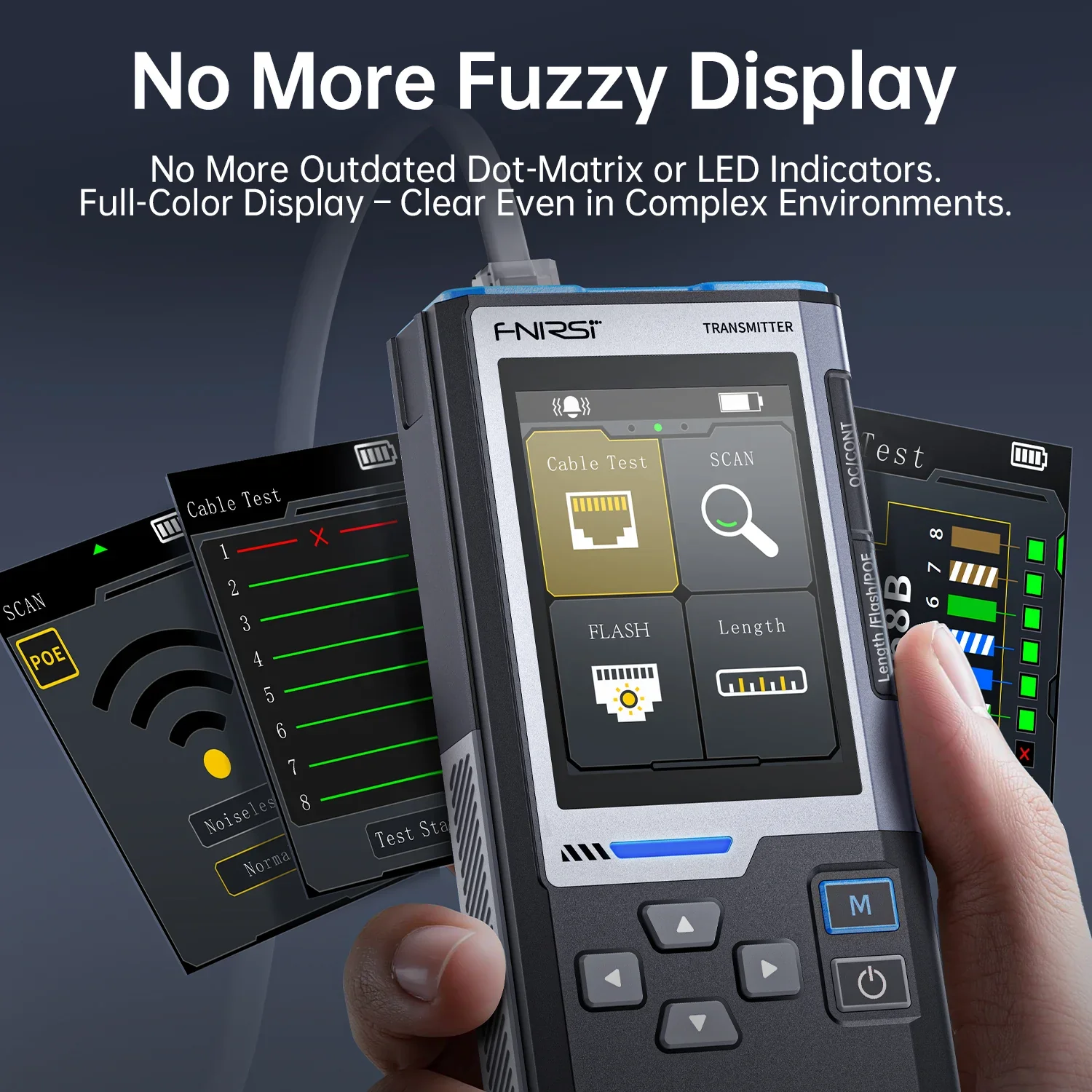

- 2.4-inch Color Screen – Clear display for test results, easy to read in any environment.

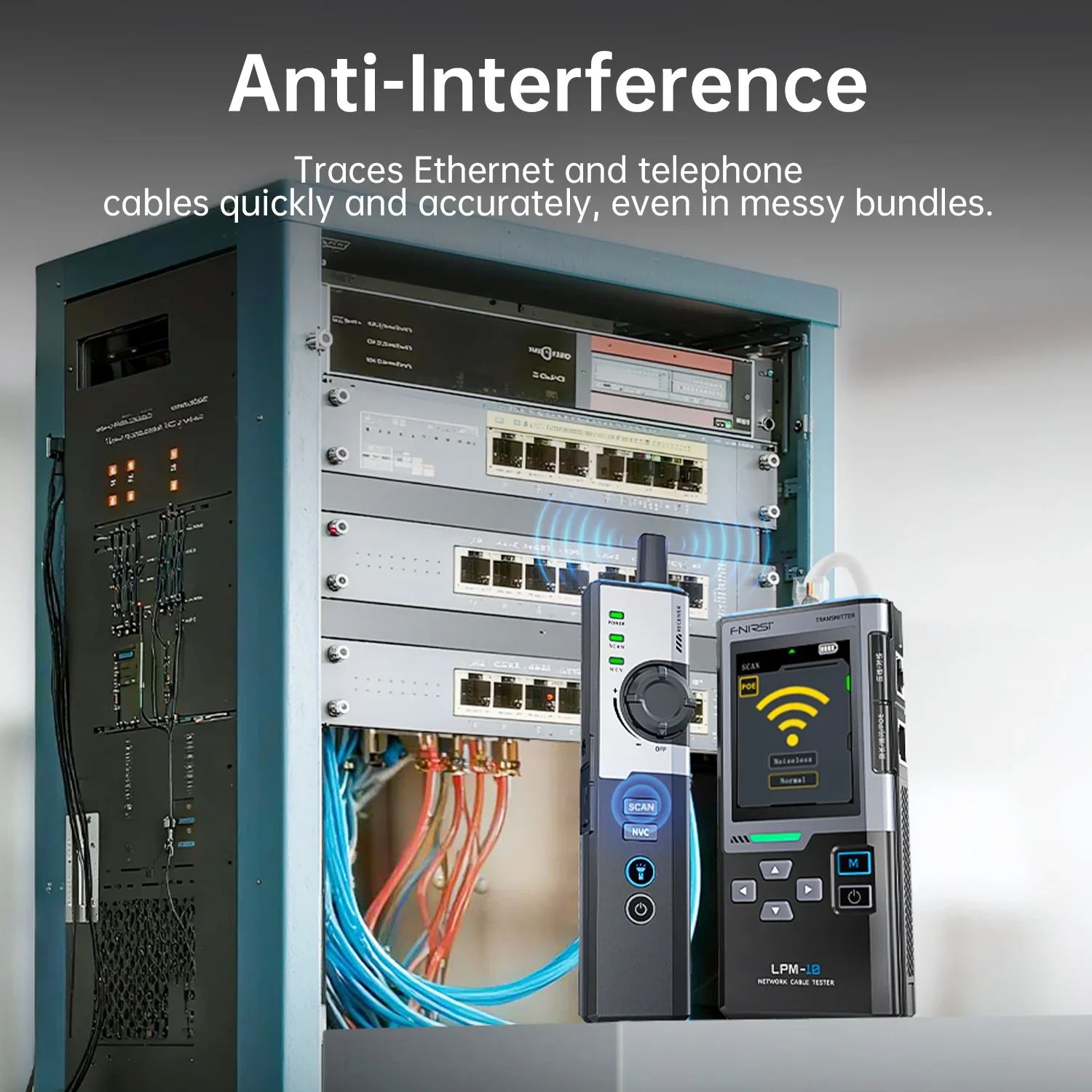

- Normal / Anti-Interference Tracing – Efficiently locate network and telephone cables even in noisy environments.

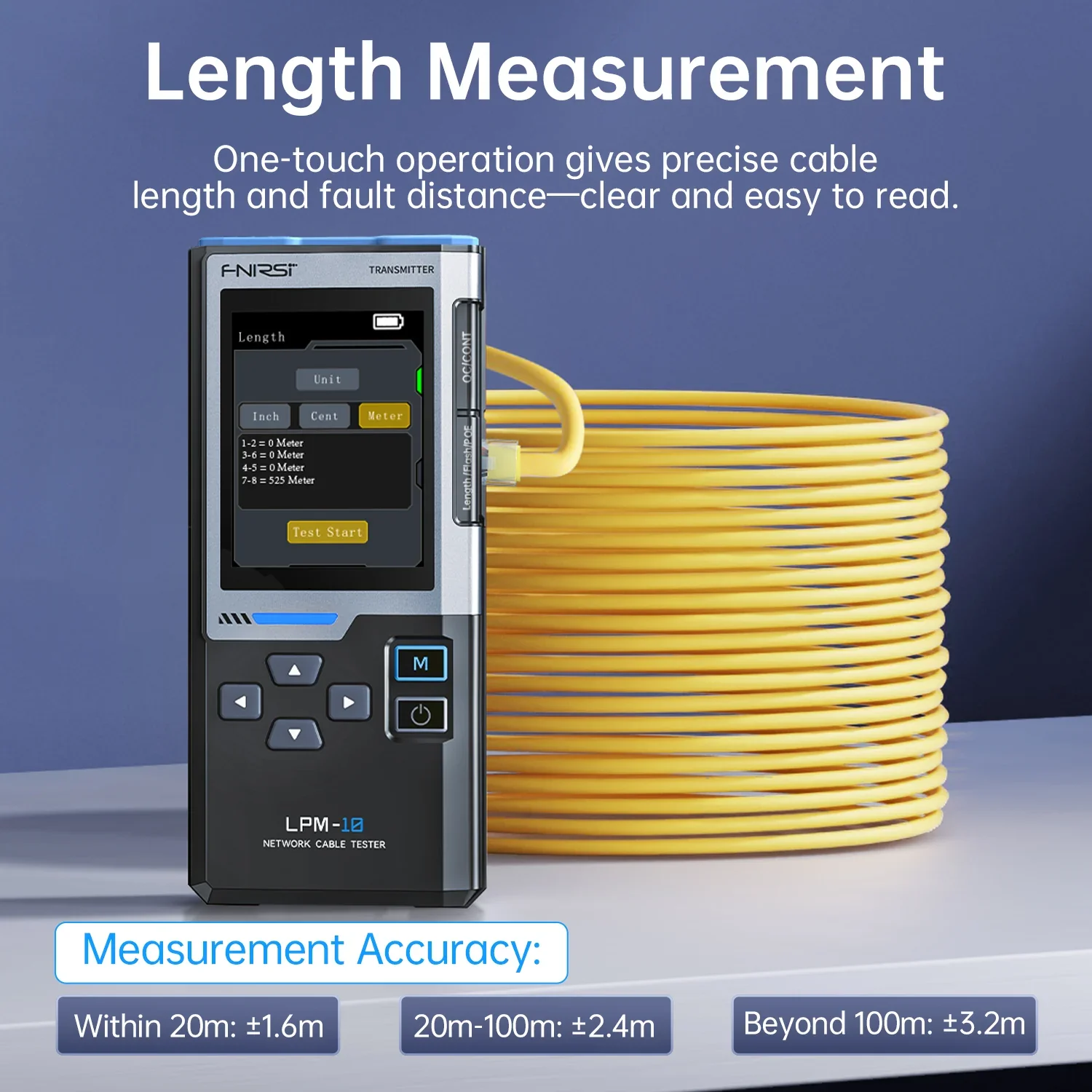

- Length Measurement – One-touch cable length testing with ±3.2m accuracy over 100m.

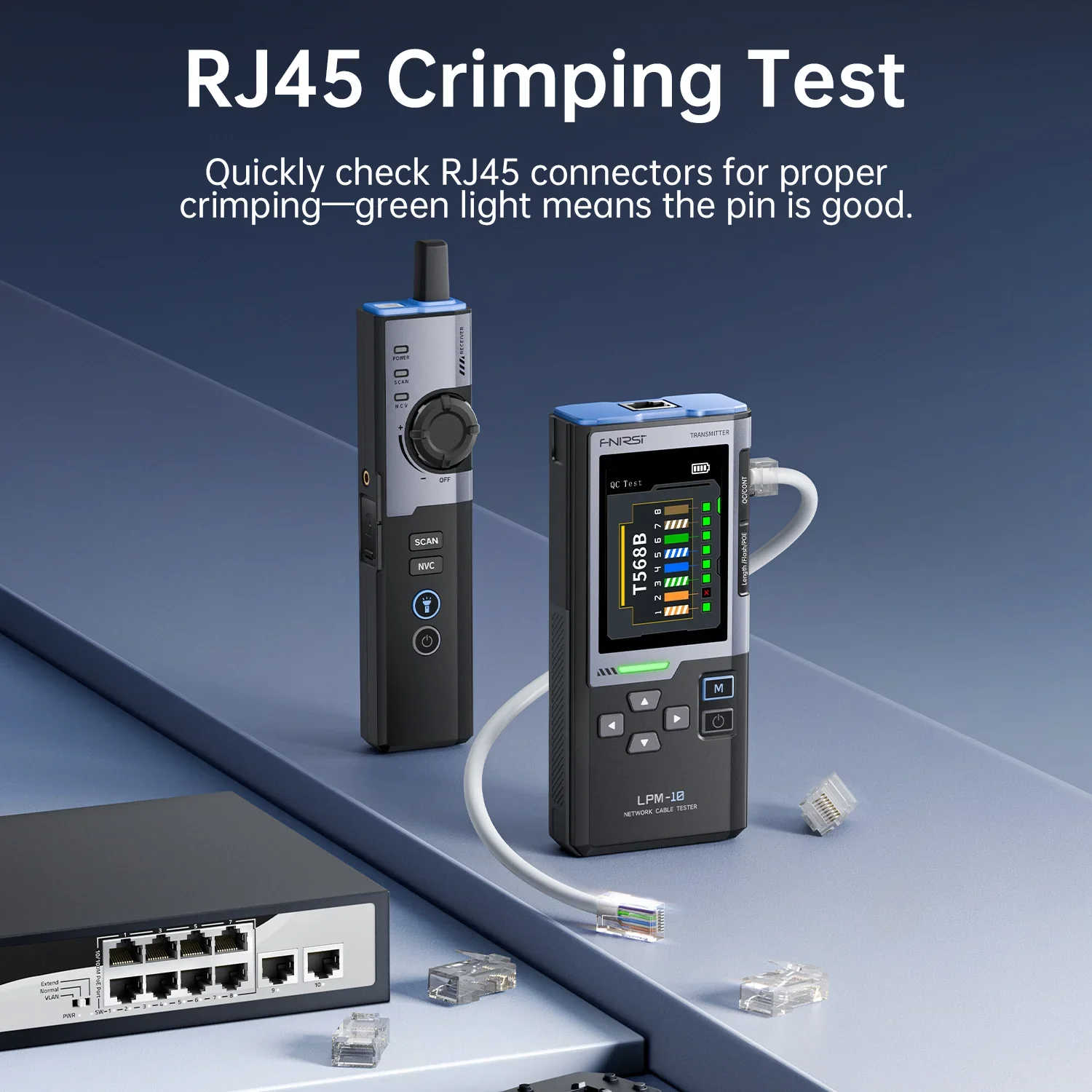

- Crimping Test – Detects pin connection errors in RJ45 connectors for stable data transmission.

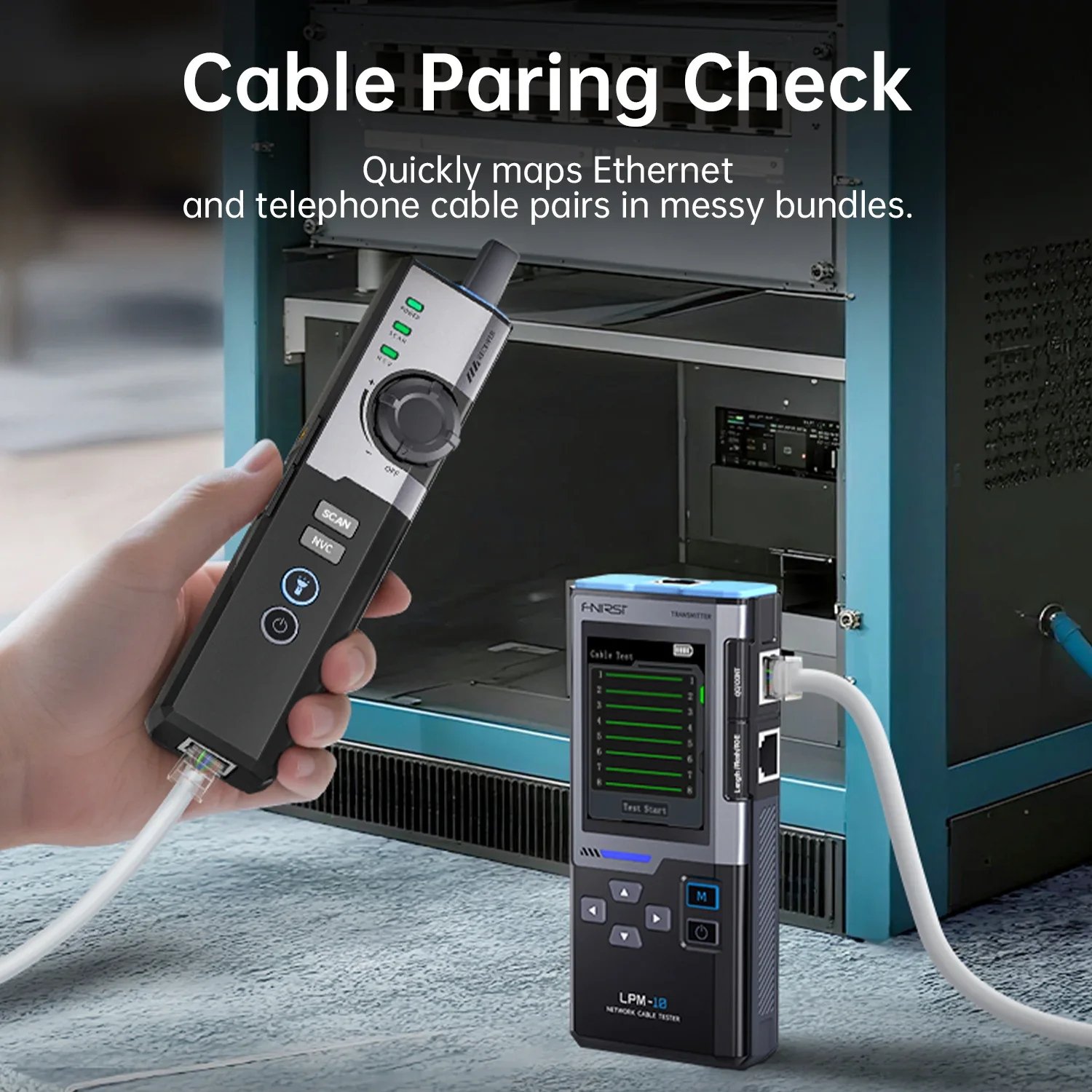

- Wiremap & Continuity Check – Quickly identify open, short, or crossover conditions.
- PoE Detection – Tests power supply mode, protocol standard, and voltage level of PoE devices.
- Port Flashing – Identifies specific network ports through flashing indicators.
- Network Speed Test – Evaluates cable performance using duplex mode.
- NCV (Non-Contact Voltage) Detection – Safely detect live wires and prevent electric shock risk.
- Built-in Flashlight – Provides illumination for work in dark or confined areas.
- Adjustable Sensitivity – Fine-tune tracing signal for accurate cable location.
- Type-C Charging Port – Fast and convenient recharging with modern compatibility.
- 1500mAh Lithium Battery – Up to 10 hours of continuous operation.
- Compact & Durable Design – Portable, ergonomic build for field engineers and technicians.
Product Parameters
Screen Material
2.4-inch color screen
Backlight
Adjustable backlight brightness
Power Supply
TYPE-C (5V/1A)
Battery
1500mAh
Language
Chinese, English
Product Size
≈ 152 × 68 × 31mm

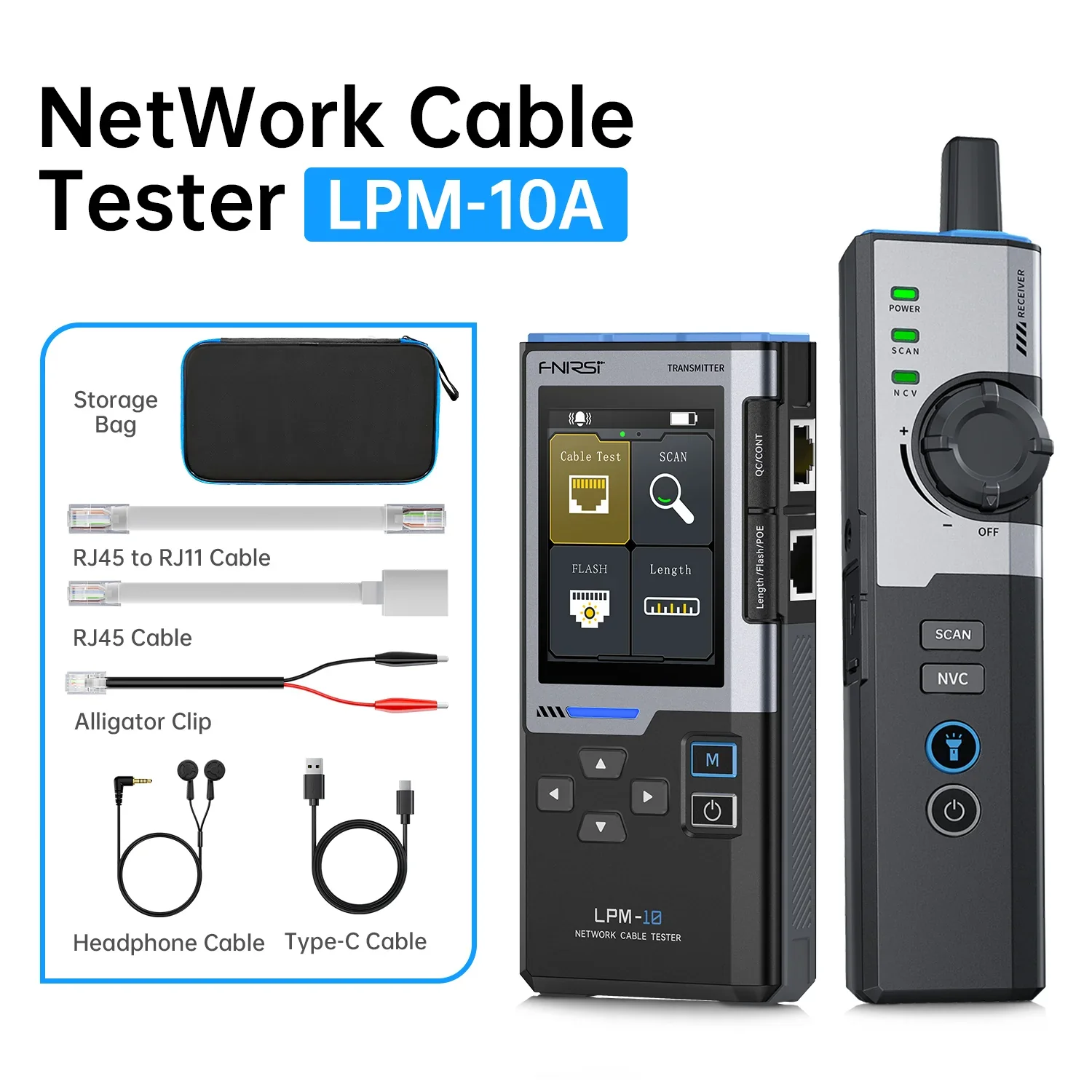

Package List:
◉ LPM-10A Host *1
◉ Type-C Cable *1
◉ Alligator Clip *1
◉ Headphone Cable *1
◉ RJ45 to RJ11 Cable *1
◉ RJ45 Cable *1
◉ Storage Bag *1
◉ Type-C Cable *1
◉ Alligator Clip *1
◉ Headphone Cable *1
◉ RJ45 to RJ11 Cable *1
◉ RJ45 Cable *1
◉ Storage Bag *1
